Discontinued

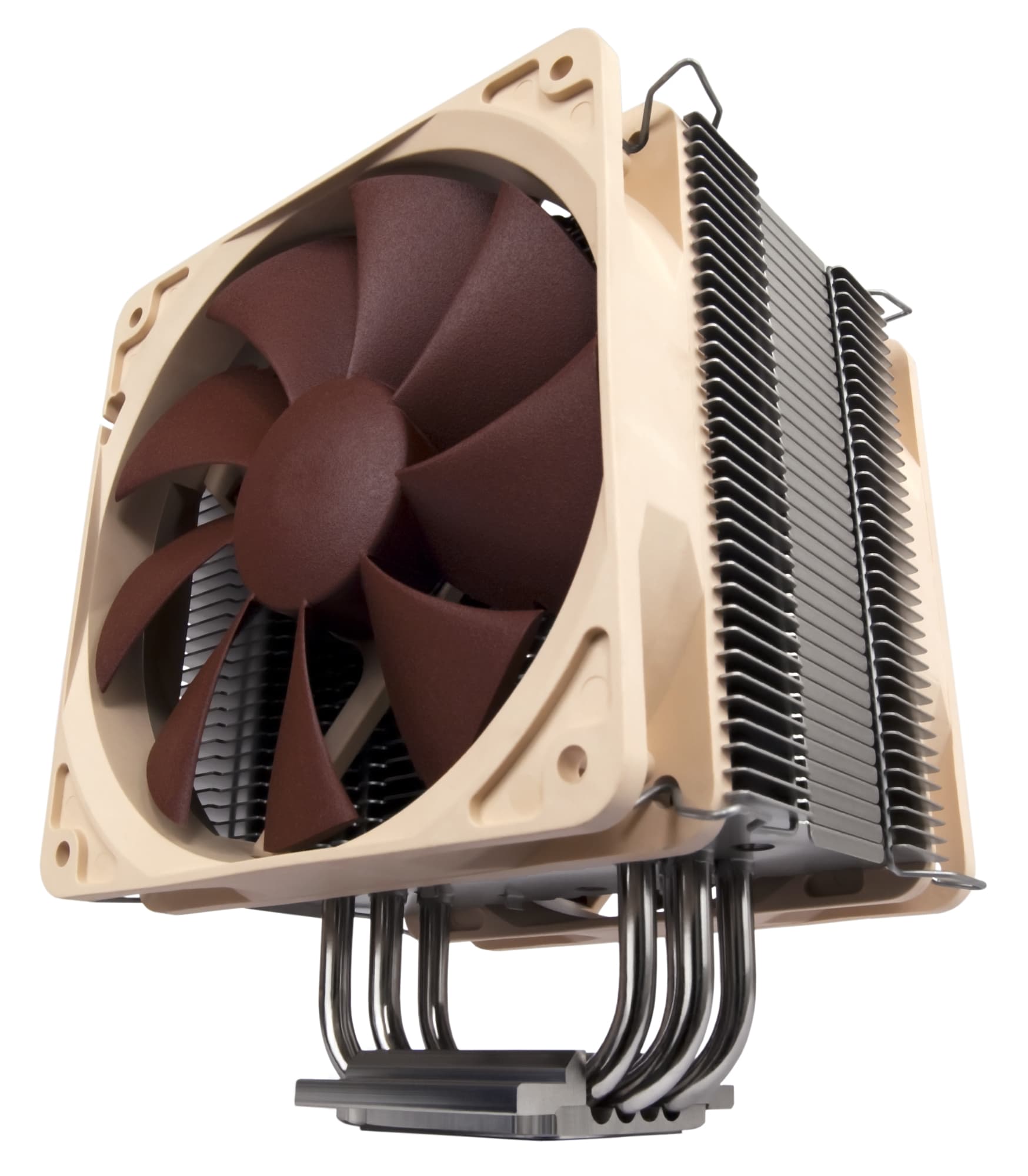

NH-U12P SE2
U-Type CPU cooler
NH-U12 series
Classic 120mm tower size
Proven NF-P12 120mm fans
Full performance under load, virtually silent at idle!
NT-H1 thermal compound
Proven pro-grade TIM solution
Key specifications
Socket compatibility | AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200, LGA1366 |
Total height | 158 mm |
Fan configuration | 2x 120x120x25mm (square) |
Colour | Brown |
Warranty | 6 years |
Scope of delivery
- 2x NF-P12 premium fan
- NA-RC4 Ultra-Low-Noise Adaptor (U.L.N.A.)
- NA-RC3 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
Extended specifications
Fan: NF-P12
Size (Form factor) | 120 x 120 x 25 mm (square) |
Speed range | 0 – 1300 rpm |
Airflow (max.) | 92.3 m³/h (54.33 CFM) |
Acoustical noise (max.) | 19.8 dB(A) |
Static pressure (max.) | 1.68 mm H₂O |
Rated voltage | 12 V |
Connector | 3-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 158 mm |
Height without fan(s) | 158 mm |
Width with fan(s) | 126 mm |
Width without fan(s) | 126 mm |
Depth with fan(s) | 120 mm |
Depth without fan(s) | 71 mm |
Weight with fan(s) | 940 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 36 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U |
Base size | 38 x 40 mm |
Logistical specifications
EAN | 4716123313496 |
UPC | 842431013873 |
Packaging unit | 12 pcs |
