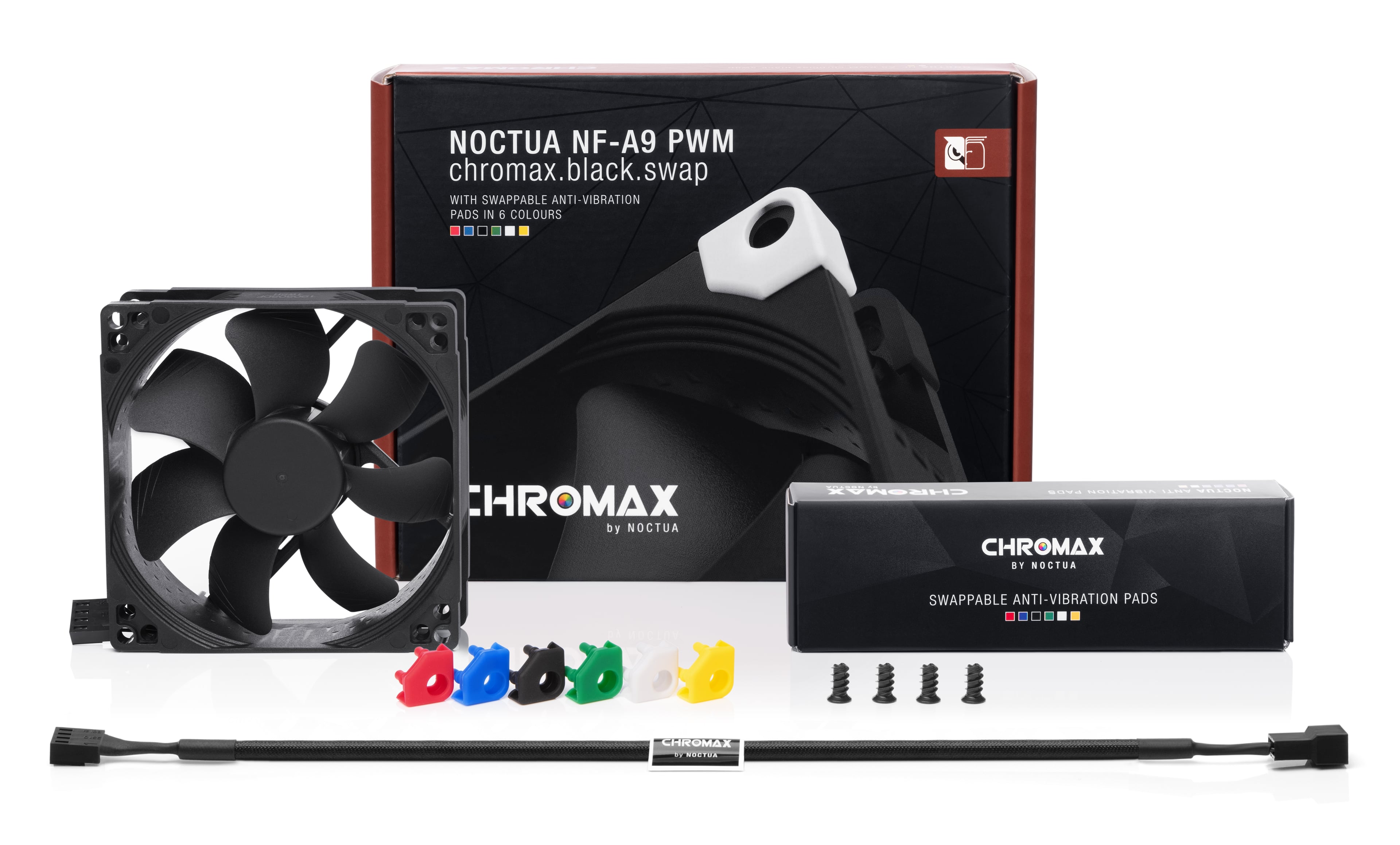

NF-A9 PWM chromax.black.swap
High-efficiency quiet 92mm fan
Award-winning 92mm design
Ideal for 9cm CPU coolers & compact cases
Quiet cooling performance
Outstanding airflow and pressure at minimum noise levels
chromax.black.swap edition
With swappable coloured anti-vibration pads
Key specifications
Size (Form factor) | 92 x 92 x 25 mm |
Speed range | 0 – 2000 rpm |
Airflow (max.) | 78.9 m³/h (46.44 CFM) |
Acoustical noise (max.) | 22.8 dB(A) |
Static pressure (max.) | 2.28 mm Hâ‚‚O |
Rated voltage | 12 V |
Input power (typical) | 1.12 W |
Connector | 4-pin |
Colour | Black |
Warranty | 6 years |
Scope of delivery
- 8x NA-AVP5 chromax.black anti-vibration pads
- 4x NA-AVP5 chromax.blue anti-vibration pads
- 4x NA-AVP5 chromax.green anti-vibration pads
- 4x NA-AVP5 chromax.red anti-vibration pads
- 4x NA-AVP5 chromax.white anti-vibration pads
- 4x NA-AVP5 chromax.yellow anti-vibration pads
- NA-EC1 chromax.black 30 cm extension cable
- Fan screws
Extended specifications
Mechanical specifications
Dimensions without anti-vibration pads | 92 x 92 x 25 mm |
Dimensions with anti-vibration pads | 93 x 93 x 27 mm |
Frame shape | Square |
Mounting hole spacing(s) | 82.5 x 82.5 mm |
Weight | 100 g |
Material frame | PBT GF30 |
Material impeller | PBT GF30 |
Material anti-vibration pads | Silicone rubber |
Bearing | SSO2 |
Rotational direction | Counter-clockwise |
Frame colour | Black |
Impeller colour | Black |
Anti-vibration pads colour | Multi colour |
Connector type | A2543-4PIN (or equal) |
Cable length | 10 mm |
Cable length with extension cable (included) | 310 mm |
Wire | 26 AWG |
Performance specifications
Rotational speed (max.) | 2000 rpm |
Rotational speed @ 20% PWM | 500 rpm |
Rotational speed @ 0% PWM | 0 rpm |
Acoustical noise (max.) | 22.8 dB(A) |
Airflow (max.) | 78.9 m³/h (46.44 CFM) |
Static pressure (max.) | 2.28 mm Hâ‚‚O |
Electrical specifications
Motor type (phases) | Single phase |
Poles | 4 |
Slots | 4 |
Driver IC | NE-FD1 |
Rated voltage | 12 V |
Starting voltage | 7 V |
Max. operating voltage | 13.2 V |
Pin configuration |  |
Pin 1 | Black: Ground (GND) |
Pin 2 | Yellow: Voltage (Vcc) |
Pin 3 | Green: RPM Signal |
Pin 4 | Blue: PWM Signal |
Input power (max) | 1.2 W |
Input power (typical) | 1.12 W |
Input current (max) | 0.1 A |
Input current (typical) | 0.09 A |
Safety, compliance & environmental specifications
Safety standards | EN62368-1 |
EMC standards | EN55032, EN55035 |
UL | |
CE | |
UKCA | |
Production Standards | ISO 9001 & ISO 14001 |
Flammability | UL 94 V-0 |
REACH | |
RoHS | |
CMRT | |
EMRT | |
Ingress protection | IP50 |
Operating temperature | -10°C to +70°C |
Operating humidity | 15 – 90 % |
Storage temperature | -20°C to +75°C |
Storage humidity | 15 – 90 % |
MTTF | > 150,000 h |
Locked rotor protection | Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec. |
Polarity protection | Open circuit when Vcc & GND are exchanged. Circuit won't be burned within 5 sec when Vcc & GND are exchanged. |
Overvoltage protection | |
Overcurrent protection | |
Insulation resistance | 10 MΩ / between unshielded wire and frame at 500 VDC/min |
Dielectric strength | 5 mA max. / measured between lead wire (+) and frame at 500 VAC/min |
Logistical specifications
Packaging dimensions | 188 x 147 x 38 mm |
Packaging weight (including product) | 218 g |
EAN | 9010018100488 |
UPC | 841501110481 |
Packaging unit | 40 pcs |
Packaging unit dimensions | 416 x 400 x 350 mm |
Packaging unit weight | 10.34 kg |
