NF-A9x14 HS-PWM chromax.black.swap
Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A9x14 has established itself as a default choice when it comes to premium-quality slim 92mm fans. The chromax.black.swap edition combines the NF-A9x14’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-9x14 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
/
Details
Award-winning NF-A9x14 design
Having received dozens of recommendations from the international press, Noctua’s NF-A9x14 has become a proven premium choice for slim 92mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
chromax.black.swap edition
Maximising colour choices, the NF-A9x14 chromax.black.swap fan can be colour-customised using the included self-adhesive anti-vibration pads as well as optional coloured cables. This makes it ideal for enthusiasts looking for a true premium-grade fan that can be colour-coordinated with popular build themes such as all black, black & white or black & red.

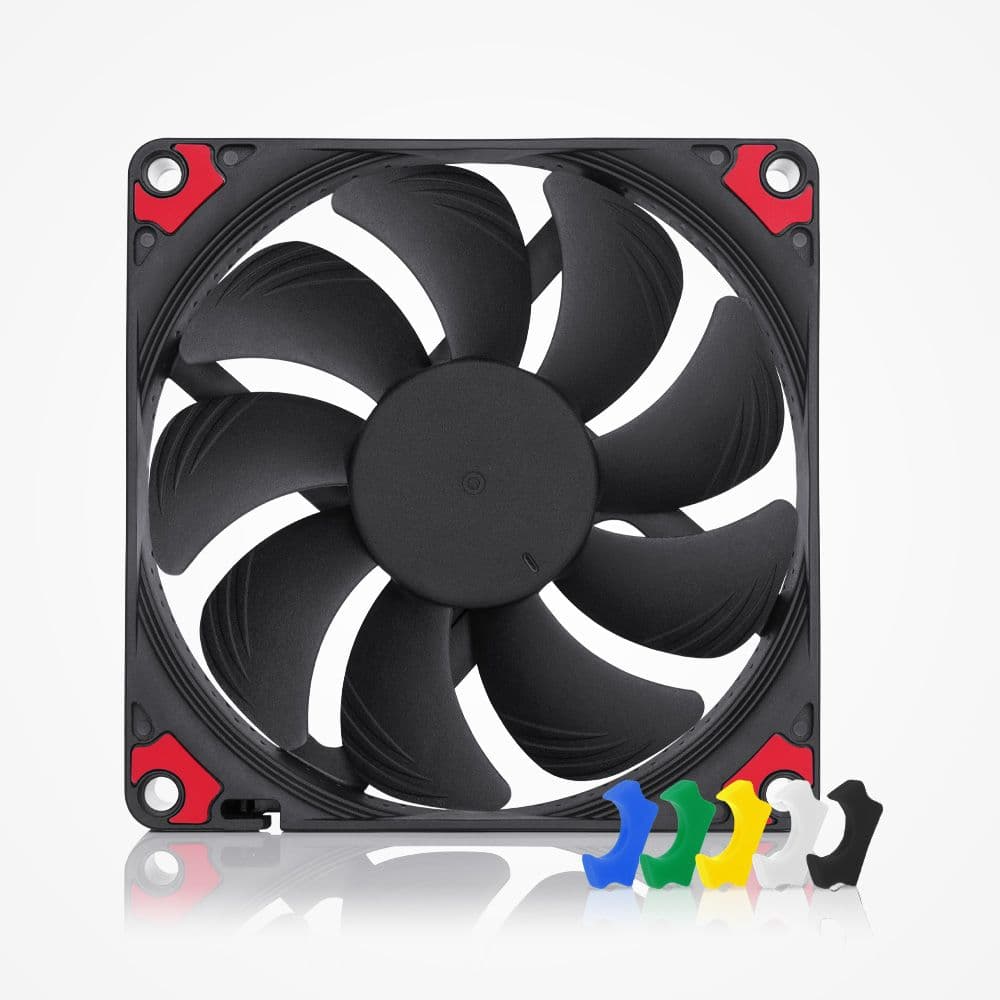

Self-adhesive anti-vibration pads in 6 colours
The NF-A9x14 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes.
Optional coloured cables
Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.
14mm low profile design
Measuring only 14mm in thickness, the NF-A9x14 is much slimmer than standard 92x25mm fans. This makes it ideal for all applications where standard fans would take up too much space, such as low profile CPU coolers in HTPC builds or server environments.

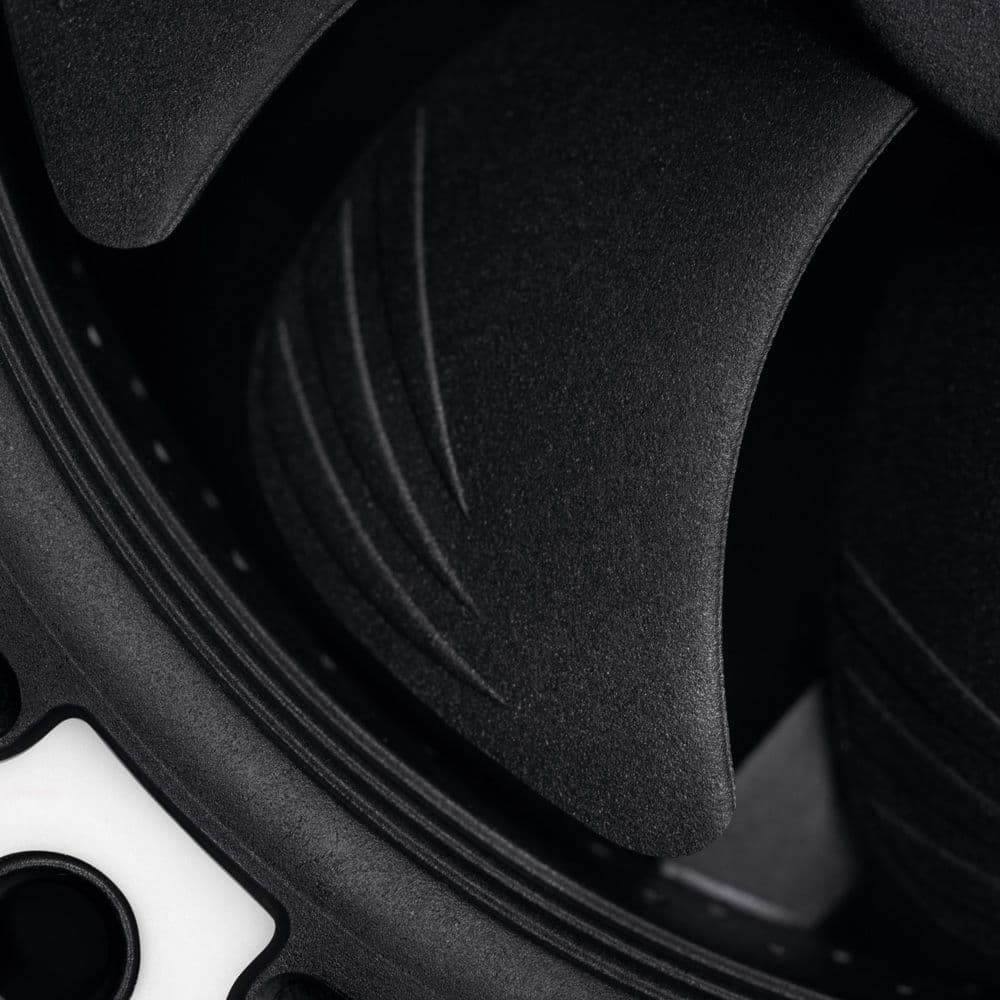

Flow Acceleration Channels
The NF-A9x14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
SSO2 Bearing
The NF-A9x14 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A9x14 uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9x14 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.
FAN Specification
Size
92x92x14 size
Mounting hole spacing
82,5x82,5 mounting_hole_spacing
4-pin PWM connector
Cable length
2cm + 30cm NA-EC1 extension cable cable_length
Bearing
SSO2 bearing
Blade geometry
A-Series with Flow Acceleration Channels blade_geometry
Frame technology
AAO (Advanced Acoustic Optimisation) frame_technology
Rotational speed (+/- 10%)
2500 rotational_speed_10per
Min. rotational speed @ 20% PWM (+/-20%)
600 min_rotational_speed_pw
57,5 airflow
Acoustical noise
23,6 acoustical_noise
Static pressure
2,11 static_pressure
Input power (typical)
1,848 input_power_typical
Input power (max.)
2,52 max_input_power
Input current (typical)
0,154 input_current_typical
Max. input current
0,21 max_input_current
Operating voltage
12 voltage
MTTF
> 150.000 mtbf
Scope of Delivery
- 8x NA-AVP8 chromax.black anti-vibration pads
- 8x NA-AVP8 chromax.blue anti-vibration pads
- 8x NA-AVP8 chromax.green anti-vibration pads
- 8x NA-AVP8 chromax.red anti-vibration pads
- 8x NA-AVP8 chromax.white anti-vibration pads
- 8x NA-AVP8 chromax.yellow anti-vibration pads
- NA-EC1 chromax.black 30 cm extension cable
- 4x fan screws
6 years warranty
