Discontinued

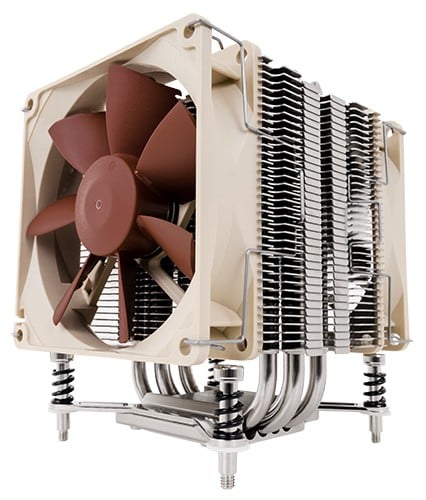

NH-U9DX i4
CPU cooler for Intel Xeon LGA20xx
Compact single-tower design
For excellent case-, RAM- and PCIe-compatibility
Proven NF-B9 92mm fans
Full performance under load, virtually silent at idle!
Dedicated version for LGA20xx
For Intel Xeon LGA2066, LGA2011 (Square ILM & Narrow ILM) & LGA13xx
Key specifications
Socket compatibility | LGA2066 (Square ILM & Narrow ILM), LGA2011 (Square ILM & Narrow ILM), LGA2011-3 (Square ILM & Narrow ILM), LGA1366 (Xeon backplate), LGA1356 (Xeon backplate) |
Total height | 125 mm |
Fan configuration | 2x 92x92x25mm |
NSPR | 87 |
Warranty | 6 years |
Scope of delivery
- 2x NF-B9 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
Extended specifications
Fan: NF-B9 PWM
Size (Form factor) | 92 x 92 x 25 mm |
Speed range | 0 – 1600 rpm |
Airflow (max.) | 64.3 m³/h (37.85 CFM) |
Acoustical noise (max.) | 17.6 dB(A) |
Static pressure (max.) | 1.61 mm H₂O |
Rated voltage | 12 V |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 125 mm |
Height without fan(s) | 125 mm |
Width with fan(s) | 95 mm |
Width without fan(s) | 95 mm |
Depth with fan(s) | 120 mm |
Depth without fan(s) | 71 mm |
Weight with fan(s) | 640 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Fin count | 36 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U, 4U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 87 |
Logistical specifications
Packaging dimensions | 130 x 210 x 180 mm |
Packaging weight (including product) | 1176 g |
EAN | 4716123314967 |
UPC | 841501100031 |
Packaging unit | 12 pcs |
Packaging unit dimensions | 555 x 435 x 275 mm |
Packaging unit weight | 15 kg |
