Discontinued
NH-C14
C-Type CPU cooler
Top-flow design
For lower height and better component cooling
Dual NF-P14 fans
With PWM support and Low-Noise Adaptors
NT-H1 thermal compound
Proven pro-grade TIM solution
Key specifications
Socket compatibility | AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200, LGA775, LGA1366 |
Total height | 130 mm |
Fan configuration | 2x 140x140x25mm (round) |
Colour | Brown |
Warranty | 6 years |

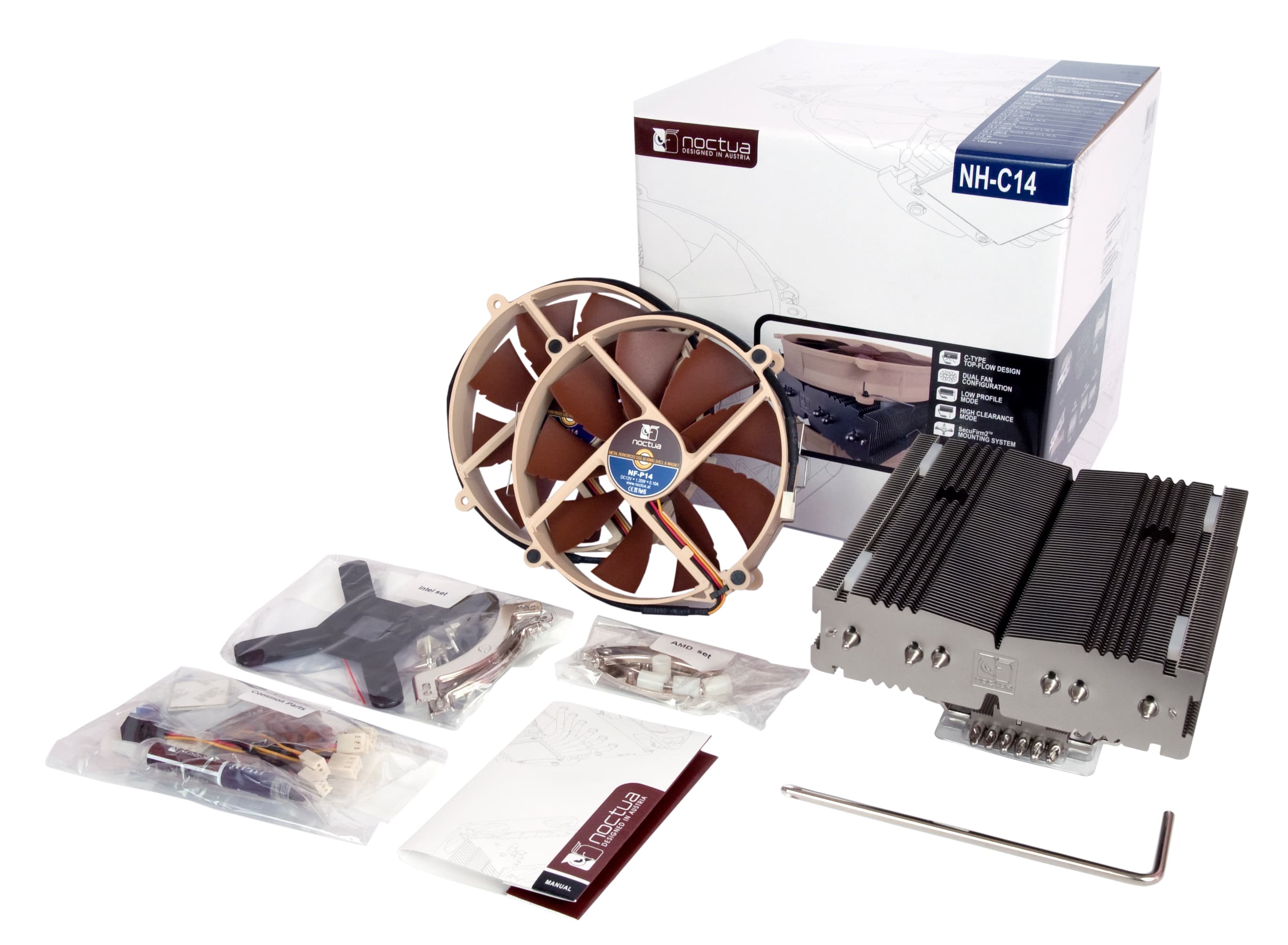

Scope of delivery
- 2x NF-P14 premium fan
- NA-RC3 Low-Noise Adaptor (L.N.A.)
- NA-RC4 Ultra-Low-Noise Adaptor (U.L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
- Noctua metal case-badge
Extended specifications
Fan: NF-P14 FLX
Size (Form factor) | 140 x 140 x 25 mm (round) |
Speed range | 0 – 1200 rpm |
Airflow (max.) | 110.3 m³/h (64.92 CFM) |
Acoustical noise (max.) | 19.6 dB(A) |
Static pressure (max.) | 1.29 mm H₂O |
Rated voltage | 12 V |
Connector | 3-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 130 mm |
Height without fan(s) | 105 mm |
Width with fan(s) | 140 mm |
Width without fan(s) | 140 mm |
Depth with fan(s) | 166 mm |
Depth without fan(s) | 166 mm |
Weight with fan(s) | 1000 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 6 |
Heatpipe diameter | 6 mm |
Fin count | 68 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 4U, 5U |
Base size | 38 x 40 mm |
Logistical specifications
EAN | 4716123314592 |
Packaging unit | 8 pcs |
