Discontinued
NH-D15 SE-AM4
Dual tower CPU cooler for AM4/AM5
6 heatpipe dual tower design
Provides outstanding cooling performance
Dual NF-A15 140mm fans
With PWM support and Low-Noise Adaptors
Special edition for AM4/AM5
Includes AMD AM4/AM5 mounting hardware only
Key specifications
Socket compatibility | AM5, AM4 |
Total height | 168 mm |
Fan configuration | 2x 140x140x25mm (round) |
NSPR | 183 |
Colour | Brown |
Warranty | 6 years |

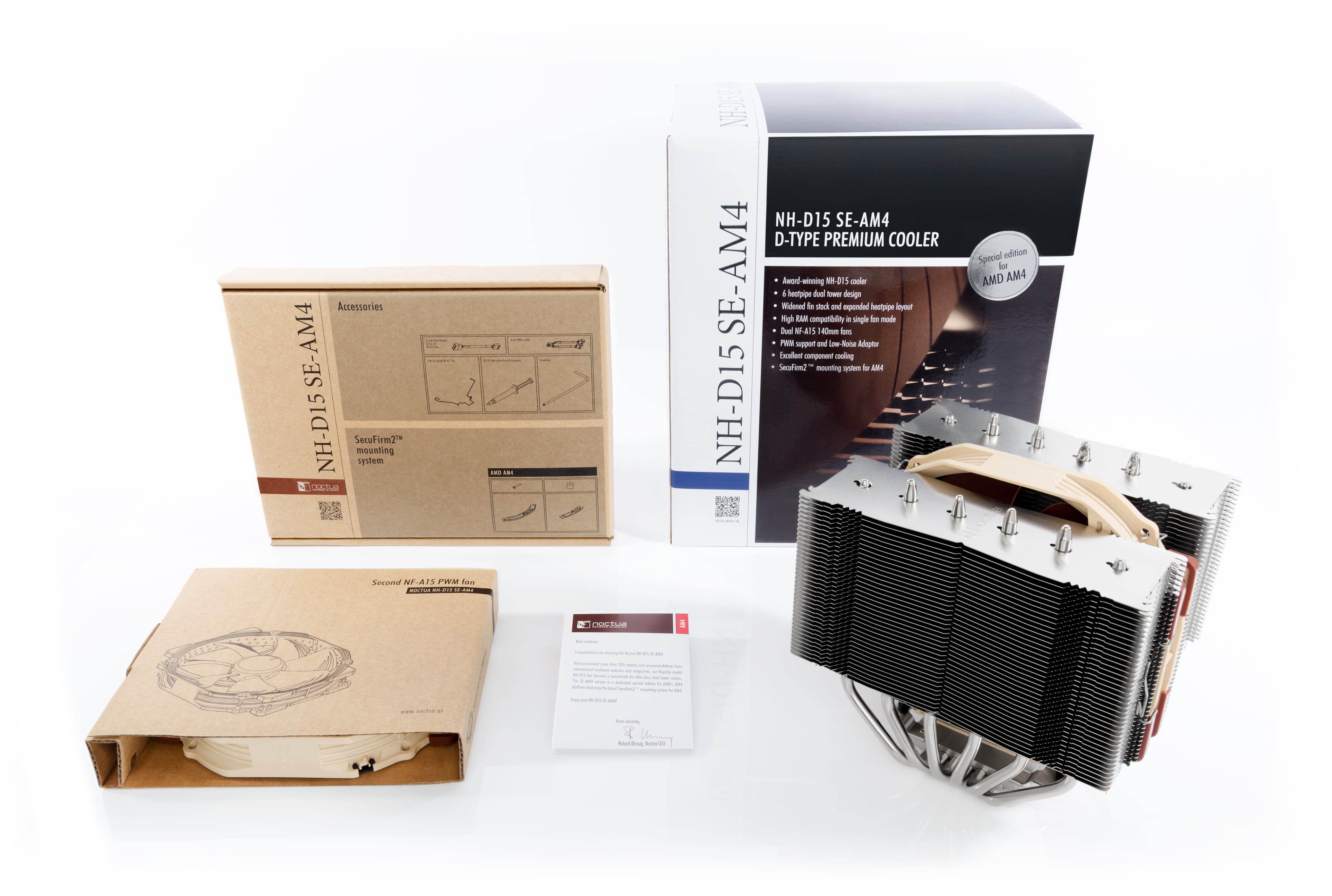

Scope of delivery
- 2x NF-A15 PWM premium fan
- 2x NA-RC7 Low-Noise Adaptor (L.N.A.)
- NA-YC1 4-pin PWM splitter cable
- NT-H1 high-grade thermal compound
- SecuFirm2™ AM4 mounting kit
- Noctua metal case-badge
Extended specifications
Fan: NF-A15 HS-PWM
Size (Form factor) | 140 x 150 x 25 mm (round) |
Speed range | 0 – 1500 rpm |
Airflow (max.) | 140.2 m³/h (82.52 CFM) |
Acoustical noise (max.) | 24.6 dB(A) |
Static pressure (max.) | 2.08 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.19 W |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 168 mm |
Height without fan(s) | 160 mm |
Width with fan(s) | 150 mm |
Width without fan(s) | 150 mm |
Depth with fan(s) | 161 mm |
Depth without fan(s) | 135 mm |
Weight with fan(s) | 1320 g |
Weight without fan(s) | 980 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Measurements & clearance |  |
Colour | Brown |
Number of heatpipes | 6 |
Heatpipe diameter | 6 mm |
Fin count | 45 |
Mounting hole pitch | 83 mm |
Rack unit compatibility | 5U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 183 |
Logistical specifications
Packaging dimensions | 235 x 266 x 185 mm |
Packaging weight (including product) | 2150 g |
EAN | 9010018000061 |
UPC | 841501100062 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 509 x 415 x 573 mm |
Packaging unit weight | 19.65 kg |
