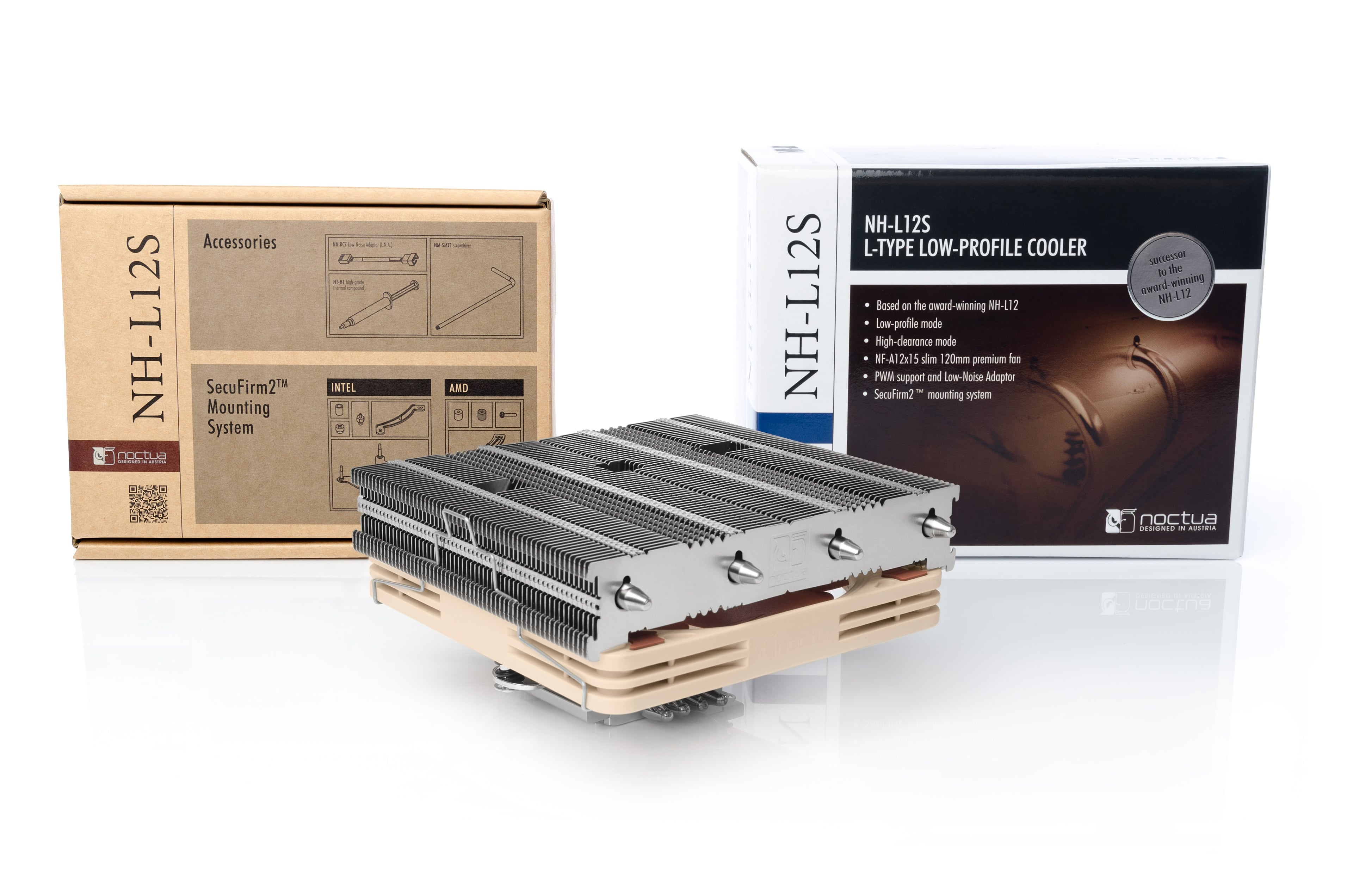

NH-L12S
70mm height low-profile cooler
Compact low-profile design
70mm height for small form factor systems
Slim NF-A12x15 120mm fan
With PWM support and Low-Noise Adaptor
SecuFirm2™ mounting system
Synonymous with quality, safety and easy installation
Key specifications
Socket compatibility | AM5, AM4, LGA1700, LGA1851, LGA1954, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200 |
Total height | 86 mm |
Fan configuration | 1x 120x120x15mm |
NSPR | 88 |
Colour | Brown |
Warranty | 6 years |
Scope of delivery
- NF-A12x15 PWM premium fan
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ mounting kit
- Noctua metal case-badge
Extended specifications
Fan: NF-A12x15 PWM
Size (Form factor) | 120 x 120 x 15 mm |
Speed range | 0 – 1850 rpm |
Airflow (max.) | 94.2 m³/h (55.44 CFM) |
Acoustical noise (max.) | 23.9 dB(A) |
Static pressure (max.) | 1.53 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.27 W |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 86 mm |
Height without fan(s) | 70 mm |
Width with fan(s) | 128 mm |
Width without fan(s) | 128 mm |
Depth with fan(s) | 146 mm |
Depth without fan(s) | 146 mm |
Weight with fan(s) | 520 g |
Weight without fan(s) | 390 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 4 |
Heatpipe diameter | 6 mm |
Fin count | 58 |
Mounting hole pitch | 78 mm |
Rack unit compatibility | 5U, 4U, 3U |
Base size | 38 x 40 mm |
Performance specifications
NSPR | 88 |
Logistical specifications
Packaging dimensions | 146 x 181 x 141 mm |
Packaging weight (including product) | 1100 g |
EAN | 9010018000054 |
UPC | 841501100055 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 340 x 400 x 308 mm |
Packaging unit weight | 9.5 kg |
