NH-U14S TR5-SP6
High-end server & workstation cooler
140mm single-tower design
Slim profile for better overall compatibility
Dual NF-A15 140mm fans
For unrivalled quiet cooling performance
Dedicated version for TR5/SP6
Tailored for AMD Threadripper and Epyc 8004
Key specifications
Socket compatibility | sTR5, SP6 |
Total height | 165 mm |
Fan configuration | 2x 140x140x25mm (round) |
NSPR | 179 |
Colour | Brown |
Warranty | 6 years |

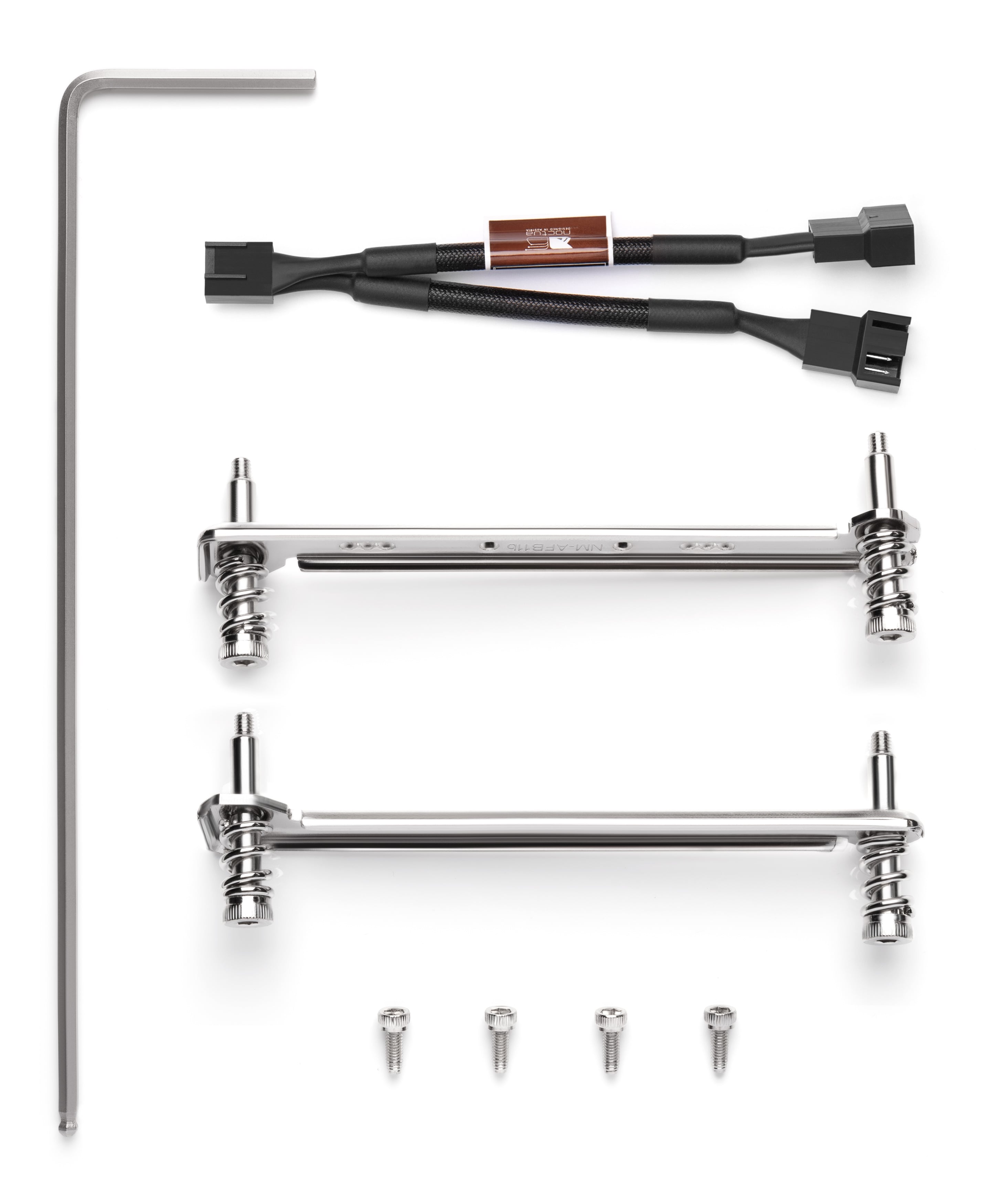

Scope of delivery
- 2x NF-A15 HS-PWM premium fan
- NA-YC1 4-pin PWM splitter cable
- NT-H2 high-grade thermal compound (pre-applied)
- SecuFirm2™ mounting kit for sTR5/SP6
- NM-SMT4 mounting tool for mounting bracket installation
Extended specifications
Fan: NF-A15 HS-PWM
Size (Form factor) | 140 x 150 x 25 mm (round) |
Speed range | 0 – 1500 rpm |
Airflow (max.) | 140.2 m³/h (82.52 CFM) |
Acoustical noise (max.) | 24.6 dB(A) |
Static pressure (max.) | 2.08 mm H₂O |
Rated voltage | 12 V |
Input power (typical) | 1.19 W |
Connector | 4-pin |
Colour | Brown |
Warranty | 6 years |
Mechanical specifications
Height with fan(s) | 165 mm |
Height without fan(s) | 160 mm |
Width with fan(s) | 150 mm |
Width without fan(s) | 150 mm |
Depth with fan(s) | 111 mm |
Depth without fan(s) | 52 mm |
Weight with fan(s) | 1136 g |
Weight without fan(s) | 797 g |
Material: heatsink base | Copper, nickel plated |
Material: heatsink fins | Aluminium, nickel plated |
Material: heatpipes | Copper, nickel plated |
Interface heatpipes/heatsink fins | Soldered |
Colour | Brown |
Number of heatpipes | 6 |
Heatpipe diameter | 6 mm |
Fin count | 56 |
Rack unit compatibility | 5U |
Base size | 56 x 70 mm |
Performance specifications
NSPR | 179 |
Logistical specifications
Packaging dimensions | 227 x 223 x 142 mm |
Packaging weight (including product) | 1682 g |
EAN | 9010018000450 |
UPC | 841501100451 |
Packaging unit | 8 pcs |
Packaging unit dimensions | 485 x 470 x 330 mm |
Packaging unit weight | 15 kg |
